BIOBASE HIGH PERFORMANCE LIQUID CHROMATOGRAPHY HPLC SYSTEM MACHINE LABORATORY

Deskripsi

Elitapex HPLC Workstation Characteristics: * Simple operation and convenient use; * Optimize the control protocol to make the communication between the workstation and the unit instrument module more smooth; * Stable real-time feedback of the status and parameters of each unit module.

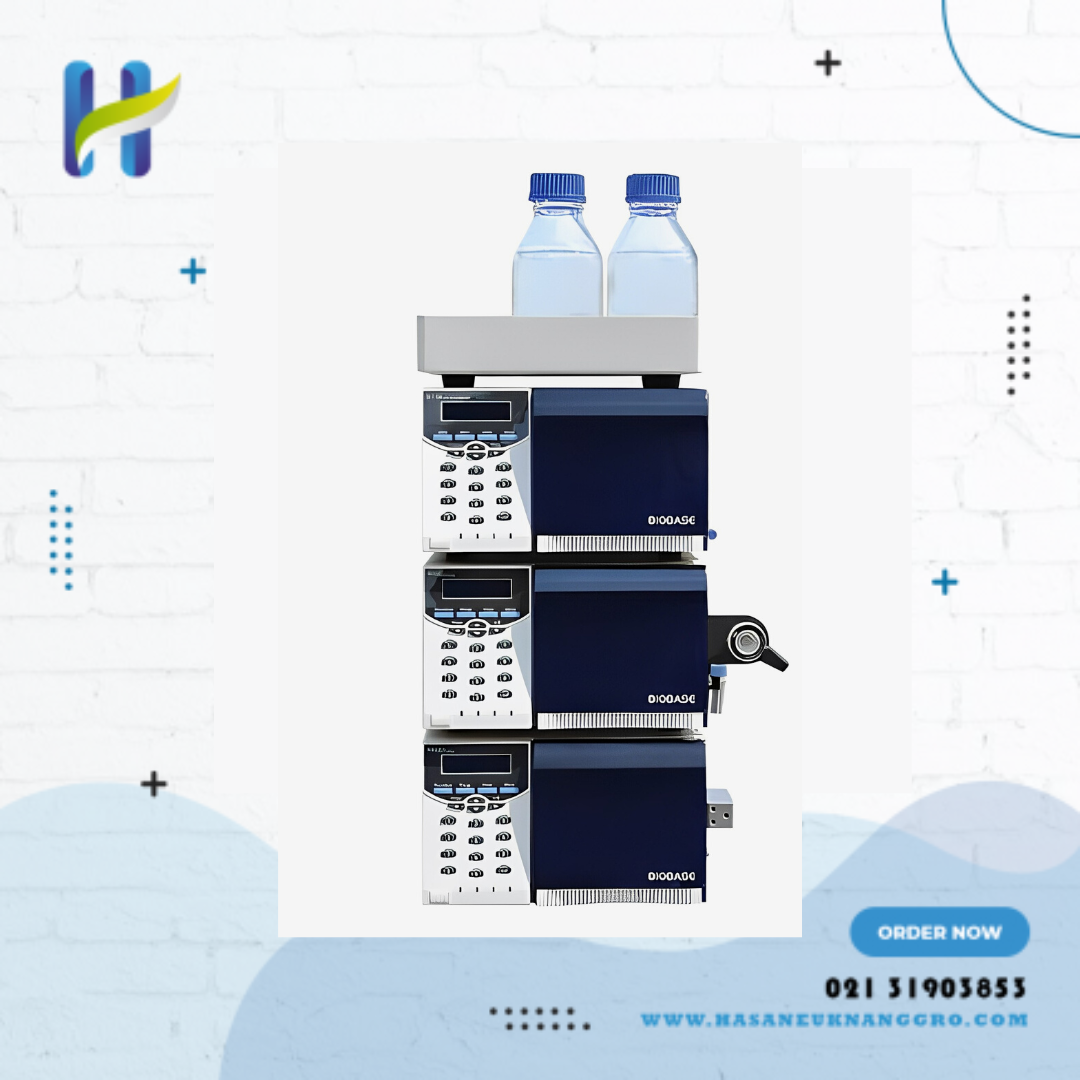

BK1100 HPLC System is a cost-effective product, and it is suitable for use in the production or manufacture which needed to strict cost control. Characteristics: *Affordable *VFD display screen *Control mode: external/internal *Easy to use *Superior repeatability

P1100 High Pressure Constant Flow Pump: Flow Rate 0.001-10.000 mUmin (Step: 0.001 mL/min) Accuracy <+0.3% Precision <0.1% RSD Max Pressure 42 MPa (6000 psi) Power AC 220 V, 50 Hz Dimension/Weight 420*260*160 mm (L* W* H*) /12 kg D1100 UV-Visible Detector: Linearity 1.8 AU Wavelength Range 190~700 nm Noise £±1.0*10-5 AU Drift 2.0*1 O’4 AU/h Power AC220V ±10%,50 Hz, 100 W DimensionsA/Veight 420*260*160 mm (L* W* H*) /12 kg 01100 Column Oven： Temperature range Ambient + 5 °C~99 °C Accuracy ± 0.1 °C Precision M 0.1 °C Power AC220 V ±10%,50 Hz, 150 W Dimensions/Weight 120*65 *500 mm (L* W* H*) /8.5 kg Elitapex HPLC Workstation Characteristics: * Simple operation and convenient use; * Optimize the control protocol to make the communication between the workstation and the unit instrument module more smooth; * Stable real-time feedback of the status and parameters of each unit module. Technical Parameters: Model BK-LCI1100 BK-LCG1100 Pump P1100*1 P1100*2 Detector D1100*1 Gradient Mixer / TD-1-15*1 Solvent Bottle Tray ST1100*1 Sampler Injector Rheodyne 7725i*1 Column Supersil ODS2 5pm ID4.6*200mm*1 Workstation Elitapex*1 Valve Mounting Frame VB1100*1 System Kit Agressl 100*1 Power Supply AC220V±10%» 50Hz Optional Accessory 500ml Solvent bottle*2, Column, Column Oven Package Size(W*D*H) 500*360*300mm*1; 580*400*280mm*2 500*360*300mm*1; 580*400*280mm*3 Gross Weight 38kg 53kg
